C3- The Rucar Complex
- Home
- C3- The Rucar Complex

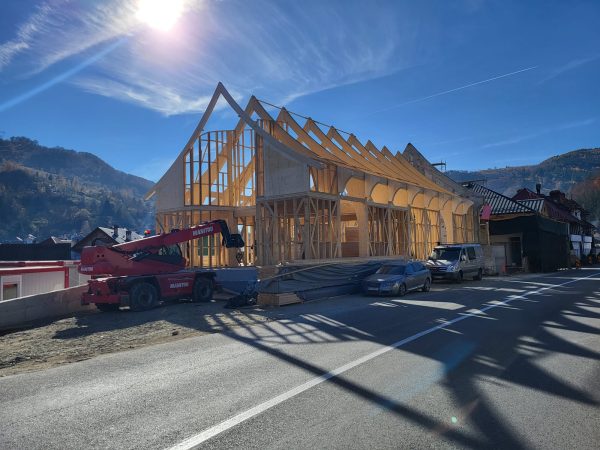

About the project
- Height regime: Ground floor+First floor
- Floor area: 520 sq m
- Location: Rucar, RO
Works performed:
- Structure Execution in red
- Roof Cladding Execution
Technical characteristics/constructive system:
- Exterior walls in TimberFrame system, 145 mm thick, made of KVH C24
- Internal walls in TimberFrame system thickness 145/95 mm from KVH 24
- CLT (Cross Laminated Timber) floor, 180 mm thick
- Main structure made of curved laminated timber frames GL24c
- Rafter frame H=200 mm made of KVH C24
- Exterior cladding made with DHF Egger 15 mm vapor-permeable thermal insulation plywood, Interior cladding made with OSB 3 NF 12-22 mm
- Roof cladding with thermally insulating plywood made of rigid wood fiber for roofs, 100 mm thick
- Application of Bilka waterproof membrane for roof
- Rothoblaas/Alsafix fasteners and joints
Why choose a house on a wooden structure?
ORGANIC
Wood is a renewable raw material. Thanks to light, photosynthesis transforms carbon dioxide from the air and soil into wood. In addition, the cost of heating during the winter and of air conditioning during the summer is a lower one, because the internal-external heat exchange is much more difficult.
EFFICIENT
Building with wood is fast and efficient. Wooden buildings can be built all year round in most climates, without using special additives. The wood can be processed, joined and sanded easily.
ACCESSIBLE PRICE
Houses with a wooden structure use little material and require less labor than those made of concrete and brick or solid wood and rarely require special equipment on the construction site.
VARIED ARCHITECTURE
Thanks to the use of lattice beams and laminated wood, openings of up to 12 meters are allowed. The prefabricated building elements are delivered to the site quickly.
FAST
The duration of the site is significantly shorter, compared to that of a brick/pillar/concrete site. By using our materials and technologies, the installation of the wooden structure can take between 6 and 12 days.
REDUCED WEIGHT
Our structures are characterized by low weight, with a high bearing capacity. The calculation programs used guarantee the economical use of materials and safety by complying with the rules in force.
